Capsule Filter End Fitting Guide

Reference our individual product data sheets to find detailed ordering information.

End Fitting Codes
Inlet	Outlet

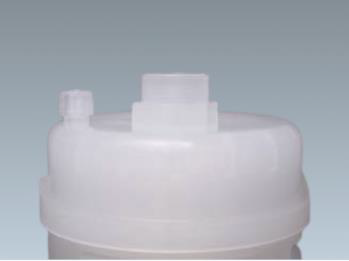

A = 1/4" Female NPT	A = 1/4" Female NPT
B = 1/4" Male NPT	B = 1/4" Male NPT

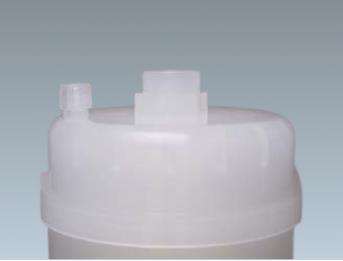

C = 3/8" Female NPT	C = 3/8" Female NPT

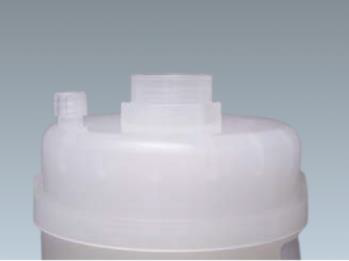

D = 1/2" Female NPT	D = 1/2" Female NPT

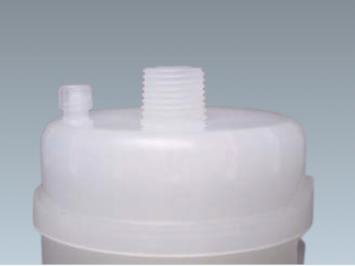

E = 1/2" Male NPT	E = 1/2" Male NPT

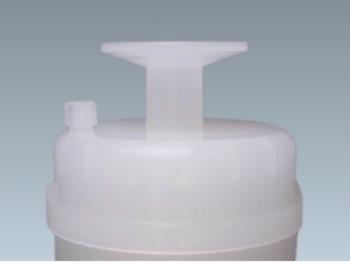

F = 1”-1 1/2" Sanitary*	F = 1”-1 1/2" Sanitary*

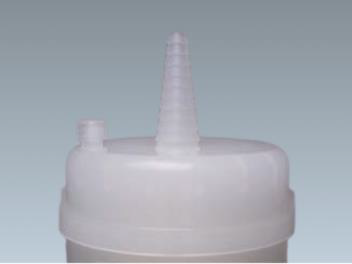

G = Stepped Hose Barb**	G = Stepped Hose Barb**
H = 1 1/2" Single Stepped Barb with Side Vent	H = 1 1/2" Sanitary with Side Vent
I = 1/2" Single Stepped Barb with Side Vent	I = 1/2" Single Stepped Barb with Side Vent
J = 3/4" Single Step Barb with Side Vent	IB = 1/2" Single Stepped Barb with Side Vent & Filling Bell
Y = Compression (JACO^©)	J = 3/4" Single Step Barb with Side Vent
Z = 6mm Quick Disconnect	Y = Compression (JACO^©)
	Z = 6mm Quick Disconnect

*Fits 1” or 1 1/2" sanitary gaskets/clamps

**Tapered Hose Barb Diameter Ranges

To learn more about the Capsule End Fittings we offer, see Capsule End Fitting Guide

Use this guide to find the end fittings that will fit your connections. The codes to use for your inlet and outlet fittings when ordering your capsule filter are shown in the list below.
