An animal serum processing company was experiencing low flow and extended processing times during upstream prefiltration of their product, which led to multiple, mid-batch filter changes and product loss. To address these issues, the company chose to redesign its filtration process and desired to work with a single supplier to ensure product consistency and provide qualification testing.
Results
To meet the goal of a single supplier, CPF’s sterilizing filters were evaluated against those of a competitor. Key findings include: 1) Higher bubble point and lower diffusive flow rates for CPF filters, indicating better integrity. 2) Superior clean water flow rates (CPF/PPS2: 6 L/min vs Comp 2: 2 L/min). 3) Greater serum throughput (CPF PPS 0.22 µm: 0.258 L vs Comp 0.22 µm: 0.155 L at 15 psid).
Key Products
PES Membrane Filters, Sterilizing Filters
Background
An animal serum processing company was experiencing low flow and extended processing times during upstream prefiltration of their product, which led to multiple, mid-batch filter changes and product loss. To address these issues, the company chose to redesign its filtration process and desired to work with a single supplier to ensure product consistency and provide qualification testing.
Upstream Filtration
Evaluation & Testing

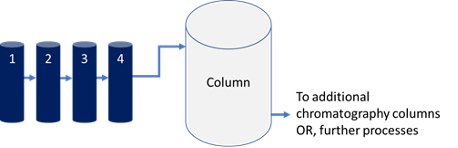

The CPF Technical Service team evaluated the current filtration process, which consisted of four different steps using filters from various vendors. No formal research had been done before implementation on how these filters would interact. Unacceptably long processing times were experienced, with batches taking up to 48 hours to process a 30-liter batch. In addition, inconsistent amounts of gel were reappearing from batch to batch after filtration. Although pre-screening through a 100-micron strainer or decanting the serum from the gels would improve the process, neither option would be practical at full scale.
Customer samples of animal serum were then tested in the CPF Application lab. The primary step was to identify a first-stage filter (particle filtration) that could process a 30-liter batch without prescreening or decanting. Three media were tested using 47 mm discs. Both constant flow and constant pressure tests were performed to predict the expected throughput for a 10” filter. The results are as follows:
| Media | Pore Size | Projected Volume (for 10” filter) |
| Polypropylene Depth | 1 µm | 7 liters |
| Fiberglass Depth | 1 µm | 33 liters |
| Fiberglass Depth | 10 µm | 65 liters |
Similar testing was performed using the serum to identify appropriate filters for clarification, prefiltration, and bioburden reduction steps, which would allow processing 30 liters through a single 10-inch filter. The optimized filters were identified as:
- Particle Filtration: PGD Fiberglass filter (10 μm)
- Clarification: PGD Fiberglass filter (1 μm)
- Prefiltration: PPD Polypropylene Depth (1 μm)
- Bioburden Reduction: BPS (0.22 μm or 0.45 μm) Polyethersulfone filters
Serum processing using the above filtration sequence showed no sign of gel reappearance after three weeks of storage at 4°C. Although the data showed the PGD filter (1 μm) to be acceptable as the first filter in the series, a PGD filter (10 μm) was recommended due to the inconsistency in the gel content of the serum.
Post Installation Results
The CPF Technical team assisted with the installation of the new filtration process, provided personnel training, and verified the operation of the filter train. The customer benefited from placing filters in a series as opposed to four separate steps. A batch was successfully processed with the 4 recommended filters listed. Throughput has increased more than 100%, while processing time for a 30-liter batch of serum was reduced to less than 24 hours (about 50% reduction).
An additional batch was also completed successfully without the PGD 10 μm filter on serum with a lower level of visual gels. As a result of this test, CPF developed a “filterability test” using 47 mm disks of the 1 μm Fiberglass media and a small volume of serum that the customer could use to determine whether or not the 10 μm filter would be required on future runs.
The Technical Service team provided written documentation on filter operation, reviewed the existing customer documentation with recommended revisions, and generated a written procedure for the filterability test.
The upstream issues were addressed, and the new process design has reaped great benefits with Critical Process Filtration cartridge filters.
Transitioning Sterilizing Filters
The company’s desire to work with a single supplier also meant qualifying CPF’s sterilizing filters by means of competitive testing.
Filter Requirements
CPF’s application engineers partnered with the customer’s process team to establish a list of capsule filter design and performance characteristics that were critical to filter acceptance in the application. They included product specifications, membrane testing, and regulatory compliance.
Filter Comparisons: CPF vs Another Vendor
The customer was using different-sized capsule filters from another supplier. All of the capsule filters were made with a dual-layer polyethersulfone (PES) membrane. The following table shows the basic capsule configurations used by the customer (Comp 1 & 2) and CPF’s equivalent filters (CPF/PPS1 & CPF/PPS2) used in the evaluation. The following charts show the comparison results.
Models Tested
| Filter | Body Length | Membrane | Filtration Area |
| Comp 1 | 3.31” | Dual layer – PES 0.45/0.22 µm | 0.1 m2 |
| CPF/PPS1 | 2.53” | Dual layer – High Capacity PES 0.45/0.22 µm | 0.093 m2 |
| Comp 2 | 5.8” | Dual layer – PES 0.45/0.22 µm | 0.2 m2 |
| CPF/PPS2 | 5.63” | Dual layer – High Capacity PES 0.45/0.22 µm | 0.278 m2 |
Integrity Test Values
| Filter | Bubble Point | Membrane |
| Comp 1 | ≥ 46psi | ≤5 mL/min @ 36 psi |
| CPF/PPS1 | ≥ 50psi | ≤ 4.3 mL/min @35 psi |
| Comp 2 | ≥ 46psi | ≤ 7 mL/min @ 36 psi |
| CPF/PPS2 | ≥ 50psi | ≤ 12.9 mL/min @ 35 psi |
Water Flow Rate
| Filter | Clean Water Flow Rate (Liters/min @ 1psid) |
| Comp 1 | 1.5 |
| CPF/PPS1 | 1.7 |
| Comp 2 | 2 |
| CPF/PPS2 | 6 |
Membrane Testing
The final sterilizing membrane was harvested from both the competitor’s capsules and CPF capsules and cut into a 47 mm disc for membrane testing.
Integrity Test Verification
| Membrane | Bubble Point Spec | Actual Bubble Point |
| Comp 0.22 µm | ≥ 46 psi |
56 psi |
| CPF PPS 0.22 µm | ≥ 50 psi |
58 psi |
Membrane Water Flow Rate
Because each capsule filter design had a different amount of filter area, the membrane was tested for flow rate through a=the same area. The 47 mm discs from each capsule were tested, and the flow rate was measured for comparison.
| Filter | Clean Water Flow Rate (mL/min/cm2 @ 10 psid) |
| Comp 0.22 µm | 17 |
| CPF PPS 0.22 µm | ≥ 24 |
Serum Throughput
The membrane from each capsule filter was throughput tested and compared. New serum, provided by the customer, was used as the test fluid. The serum was pumped through 47 mm discs (filtration area 13 cm2) at a constant rate (25 mL/min) using a peristaltic pump. Pressure differential across the membrane was measured as a function of serum volume filtered.
| Filter | Volume Filtered (L) | Ending Differential Pressure (psid) | Volume Filtered @ 15 psid (L) |
| Comp 0.22 µm | 0.182 |
20 | 0.155 |
| CPF PPS 0.22 µm | 0.258 |
15 | 0.258 |
Serum Throughput Projections
The data from the 47 mm disc throughput test were used to create projections for serum throughput in capsule form. The volume filtered at an ending differential pressure of 15 PSID was used to create the projections based on the filtration area of each capsule design.
| Filter | Filtration Area | Projected Volume @ 15 psid Ending Pressure |
| Comp 0.22 µm | 0.1 m2 |
12 Liters |
| CPF/PPS 1 | 0.093 m2 |
18 Liters |
| Comp 2 | 0.2 m2 | 24 Liters |
| CPF/PPS 2 | 0.278 m2 | 55 Liters |
Regulatory Compliance
Both CPF filters and the competitor’s products were found to be compliant in the following areas:
- Individually Integrity Tested Filters
- Integrity Test Correlated to Bacteria Retention (ASTM F838-05)
- Passes USP Class VI Plastics Test
- Non-Pyrogenic per USP <85>
- Non-Fiber Releasing (per 21 CFR 211.72)
In Conclusion
Based on comparative review and testing, Critical Process filters met customer specifications, exceeded competitive product performance, and CPF was awarded the business.
