Process Filters

Product Quick View | Equivalents | Performance Improvement | Data Sheets

Dealing With Poor Filter Performance, Unacceptable Lead Times, or High Filtration Costs?

You Are Not Alone. All of Our Customers Have Come to Us With One or More of These Issues

Our dedicated team of filtration experts are committed to:

  • Recommend, test and deliver solutions that meet your process filter requirements
  • Ship your filters faster than popular large vendors
  • Reduce your filtration costs through process design optimization and competitive pricing

Product Quick View

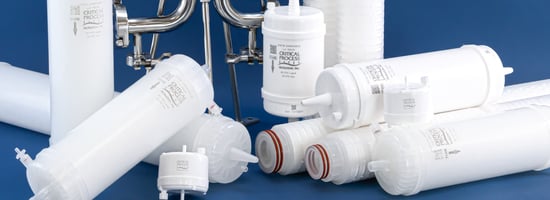

Explore our high quality cartridge, capsule and mini-capsule products that meet your filtration goals for liquids and gases.

  • Water
  • Raw ingredients
  • Intermediates
  • Fine and heavy chemicals
  • Final products
  • Process gases
  • Tank vents
For a more comprehensive list of filters, visit the Data Sheet Section below and search by your criteria.

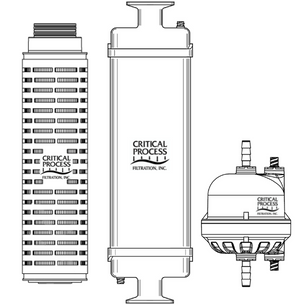

  Group of 3 devices with etched logo

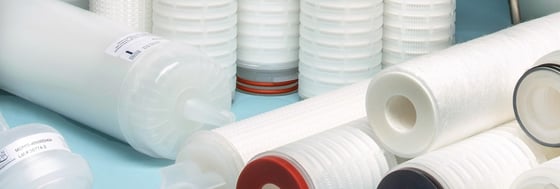

  Cartridge Filters

• 5-40 inches in nominal length

• CIP and SIP

• High temperature and high area models

  Capsule Filters

• 2-30 inches in nominal length

• Available pre-sterilized

  Mini-Capsule Filters

• Nominal area 500 cm²

• Available pre-sterilized






Sterilizing

Filtration Need  Filter Media  Device
Retention security for a critical application PPS Filter PES Untitled design (26)
Increased capacity for high bacteria load DPPS Filter PES Untitled design (26)
Increased capacity for high particle load HPPS Filter PES Untitled design (26)
High flow rate SPS Filter  PES Untitled design (26)
Chemical compatibility PNM Filter Nylon 6,6 Untitled design (26)
Tank vent & process gas: hydrophobic with chemical compatibility PTM Filter PTFE Untitled design (26)
Tank vent & process gas: hydrophobic with high air flow and low pressure drops PTR Filter PTFE Untitled design (25)

Bioburden Control

Reduce microbials in fluid with high particle count BPS Filter PES Untitled design (26)
Microbial reduction in solvents and chemicals BNM Filter Nylon 6,6 Untitled design (26)
Reduce bioburden in tank vents & process gas BTM Filter PTFE Untitled design (26)

Endotoxin Removal

Sterilizing and endotoxin removal PPC Filter PES Untitled design (26)
High flow, sterilizing and endotoxin removal SPC Filter PES Untitled design (25)
Sterilizing and endotoxin removal with chemical compatibility  PNC Filter Nylon 6,6 Untitled design (25)
General endotoxin removal GPC Filter PES Cartridge and capsule drawing
General endotoxin removal GNC Filter Nylon 6,6 Cartridge and capsule drawing

Ultrapure Water Filtration

Remove ultrafine particles in water, solvents, chemicals ENM Filter Nylon 6,6 Untitled design (25)
Remove fine particles in high purity chemicals EPD Filter Polypro Depth Untitled design (26)
Remove fine and ultrafine particles in aqueous fluids EPS Filter PES Untitled design (26)

Tank Vent & Process Gas

Remove fine particles in gas and non-aqueous liquids with chemical compatibility ETM Filter PTFE Untitled design (25)
Hydrophobic sterilizing filter with high air flow and low pressure drops PTR Filter PTFE Untitled design (25)
Hydrophobic sterilizing filter with chemical compatibility PTM Filter PTFE Cartridge and capsule drawing
Hydrophobic bioburden reduction with high flow and throughput BTM Filter PTFE Cartridge and capsule drawing

Bacteria/Yeast/Mold Retention

Filtration Need Filter Media  Device
Reduce bacteria in fermented liquids, remove yeast and mold FPS Filter PES Untitled design (26)
Reduce bacteria in fermented liquids with heavy contaminant load, remove yeast and mold VPS Filter PES Untitled design (26)
Reduce bacteria in non-fermented liquids and water, remove yeast and mold FNM Filter Nylon 6,6 Untitled design (26)

Clarification/Prefiltration

Reduce particles in critical applications BCWPS Filter PES Untitled design (26)
High contaminant holding, high flow rates PGD Filter Fiberglass Untitled design (26)
Fine particle retention for water, solvents and chemicals PPD Filter Polypro Depth Untitled design (26)
High capacity of fine particle retention HLP Filter Polypro Depth Untitled design (25)
Particle removal with low extractables to protect taste of food products FPD Filter Polypro Depth Untitled design (26)
High contaminant holding capacity for food products FGD Filter Fiberglass Untitled design (26)
High capacity membrane for clarification and filling of food products FCWPS Filter PES Untitled design (26)
Clarification of non-fermenting food products FNM Filter Nylon 6,6 Untitled design (26)
Retention of high particle loads in food products to protect taste FHLP Filter Polypro Depth Untitled design (25)



Ask us about our General Service filters.

Critical Process Filtration offers economical, general service versions of the products listed above which can lower the total cost of filtration from simple to the most complex applications.Cartridge & Capsule Filters runner

While General Service filters are not integrity tested or validated for retention, these highly efficient filters remove large amounts of contaminants early in the process to reduce the load on your more expensive downstream filters. They are also useful as stand-alone clarifying or particle removal filters in less critical applications.

Produced using the same quality materials and manufacturing excellence as our other product lines, you can be assured of their performance, dependability and scalability. Explore General Service Filters



Filter Housings

CPF Offers both Industrial and Sanitary housing options. Go to Datasheets

CPF vs. Other Major Vendors no border

Equivalent Process Filters

When your process allows for functional or exact product equivalents to replace current filters, we offer high quality options and the required testing to ensure performance.



Cross Reference my filter

Circles Filtration Performance (2)Looking for Solutions to Improve Filtration Performance?

If premature fouling plagues your filtration process and internal troubleshooting doesn't resolve the situation, we can help.

There are many reasons for poor filtration performance - ranging from process changes, to filtration process design, to a wrongly specified filter.

Tell us what you'd like to improve and our Applications Engineers will recommend cost-effective solutions.



Yes, please offer a solution

Process Filter & Housing Data Sheets

Narrow Your Results
Industry
Filter Function
Product Type
Filter Media

Clear

 Filtered Results
BPVWL Cartridge & Capsule Biopharmaceutical, Hydrophilic PVDF Membrane
BCWPS Cartridge & Capsule Filters Biopharmaceutical, High Capacity PES
BNM Cartridge & Capsule Filters Biopharmaceutical, Nylon 6,6
BPS Cartridge & Capsule Filters Biopharmaceutical, Single or Dual Layer PES
BPVWB Cartridge & Capsule Filters Biopharmaceutical, Hydrophobic PVDF Membrane
BTM Cartridge & Capsule Filters Biopharmaceutical, PTFE
CPD Cartridge Filters Commercial Grade, Polypropylene Depth
DPPS Cartridge & Capsule Filters Pharmaceutical, Dual Layered PES
DPPS Mini-Capsule Filters Pharmaceutical, Dual Layered PES
DPPS/HT Cartridge Filters Pharmaceutical, High Temperature, Dual ...
ENM Cartridge & Capsule Filters Electronics, Nylon 6,6
EPD Cartridge & Capsule Filters Electronics, Pleated Polypropylene Depth
EPD/HT Cartridge & Capsule Filters Electronics, High Temperature Polypropylene ...
EPS Cartridge & Capsule Filters Electronics, PES
EPS/HA Cartridge & Capsule Filters Electronics, High Area PES
EPS/HT Cartridge & Capsule Filters Electronics, High Temperature PES
ETM Cartridge & Capsule Filters Electronics, PTFE
ETM/HA Cartridge & Capsule Filters Electronics, PTFE
ETM/HT Cartridge Filters Electronics, High Temperature PTFE
FCWPS Cartridge & Capsule Filters Food & Beverage, High Capacity PES
FGD Cartridge & Capsule Filters Food & Beverage, Pleated Fiberglass Depth
FHLP Cartridge & Capsule Filters Food & Beverage, High Loft Pleated ...
FNM Cartridge & Capsule Filters Food & Beverage, Nylon 6,6
FPD Cartridge & Capsule Filters Food & Beverage, Pleated Polypropylene Depth
FPS Cartridge & Capsule Filters Food & Beverage, Single Layer PES
FPVWB Cartridge & Capsule Filters Food & Beverage, Hydrophobic PVDF Membrane
FPVWL Cartridge & Capsule Filters Food & Beverage, Hydrophilic PVDF Membrane
GCWPS Cartridge & Capsule Filters General Service, High Capacity PES
GDMB Cartridge & Capsule Filters General Service, Melt-Blown Polypropylene ...
GGD Cartridge & Capsule Filters General Service, Pleated Fiberglass Depth
GNC Cartridge & Capsule Filters General Service, Positively Charged Nylon 6,6
GNM Cartridge & Capsule Filters General Service, Nylon 6,6
GPC Cartridge & Capsule Filters Positively Charged, Single Layer PES Membrane
GPD Cartridge & Capsule Filters General Service, Pleated Polypropylene
GPS Cartridge & Capsule Filters General Service, Single Layer PES
GPVWB Cartridge & Capsule Filters General Service, Hydrophobic PVDF
GPVWL Cartridge & Capsule Filters General Service, Hydrophilic PVDF
GTM Cartridge & Capsule Filters General Service, PTFE
HLP Cartridge & Capsule Filters General Service, High Loft Pleated ...
HPPS Cartridge & Capsule Filters Pharmaceutical, Dual Layer High Capacity PES
HPPS/HT Cartridge Filters Pharmaceutical, High Temperature, Dual Layer ...
NSPD Cartridge & Capsule Filters General Service, Nano-Spun Polypropylene ...
PGD Cartridge & Capsule Filters Pharmaceutical, Pleated Fiberglass Depth
PNC Cartridge & Capsule Filters Pharmaceutical, Positively Charged Nylon 6,6
PNM Cartridge & Capsule Filters Pharmaceutical, Nylon 6,6
PPC Cartridge & Capsule Filters Pharmaceutical, Positively Charged, Double ...
PPD Cartridge & Capsule Filters Pharmaceutical, Pleated Polypropylene Depth
PPD/HT Cartridge Filters Pharmaceutical, High Temperature Pleated ...
PPS Cartridge & Capsule Filters Pharmaceutical, Double Layer PES
PPS/HT Cartridge Filters Pharmaceutical, High Temperature Double ...
PTM Cartridge & Capsule Filters Pharmaceutical, PTFE
PTM Mini-Capsules Pharmaceutical, PTFE
PTM/HA Cartridge & Capsule Filters Pharmaceutical, High Area, PTFE
PTM/HT Cartridge Filters Pharmaceutical, High Temperature PTFE
PTR Cartridge & Capsule Filters Pharmaceutical, PTFE
PTR/HT Cartridge & Capsule Filters Pharmaceutical, High Temperature PTFE
SPC Cartridge & Capsule Filters Pharmaceutical, Positively Charged, Single ...
SPS Cartridge & Capsule Filters Pharmaceutical, Single Layer PES
VPS Cartridge & Capsule Filters Wine & Beverage, Dual Layer PES
WPS Cartridge & Capsule Filters Water, PES
BPS Mini-Capsules Biopharmaceutical, Single Layer PES
EPD Mini-Capsules Electronics, Pleated Polypropylene Depth
EPS Mini-Capsules Electronics, PES
FGD Mini-Capsules Food & Beverage, Pleated Fiberglass Depth
FPD Mini-Capsules Food & Beverage, Pleated Polypropylene Depth
FPS Mini-Capsules Food & Beverage, Single Layer PES
GGD Mini-Capsules General Service, Pleated Fiberglass Depth
GPD Mini-Capsules General Service, Pleated Polypropylene Depth
GPS Mini-Capsules General Service, Single Layer PES
PGD Mini-Capsules Pharmaceutical, Pleated Fiberglass Depth
PPD Mini-Capsules Pharmaceutical, Pleated Polypropylene Depth
PPS Mini-Capsules Pharmaceutical, Double Layer PES
SPS/HT Cartridge Filters Pharmaceutical, Single Layer High ...
WPS Mini Capsule Filters Water, PES
Disc Filters/Holders Discs and Holders, All Flat Sheet Media
HPPS Mini-Capsule Filters Pharmaceutical, Dual Layer High Capacity PES
SPS Mini-Capsules Pharmaceutical, Single Layer PES
CHPN Housings Natural Polypropylene Housings, 10" and 20"
CIH-Multi Housings Multi-Rd, SS, Industrial, 10", 20", 30" & 40"
CSH-Multi Housings Multi-Rd, SS, Sanitary, 10", 20", 30" & 40"
CSH-Single Housings 1-Rd, SS, Sanitary, 5", 10", 20", 30" & 40"
CUR Housings 1-Rd, SS, Industrial, 5", 10", 20" and 30"
ACB Cartridge Filters Activated Carbon Block
CB Bag Filters Liquid Filter Bags with Multiple Materials
CW Cartridge Filters Yarn Wound with Multiple Materials
SC Cartridge Filters Stainless Steel Depth Media

Sorry, there are no products currently available with the chosen filters.
