Use this guide to find the end fittings that will fit your connections. On the Mini-Capsule’s datasheet, fill in the appropriate end-fitting code listed below when creating your part number.
| End Fitting Codes | |||
|
Inlet |
Inlet Vent Port | Outlet | Outlet Vent Port |
|
1 = 1/8" Hose Barb |
1 = 1/8" Hose Barb | 1 = 1/8" Hose Barb | 1 = 1/8" Hose Barb |
|
2 = 1/4" Hose Barb |
2 = 1/4" Hose Barb |
2 = 1/4" Hose Barb |
2 = 1/4" Hose Barb |
|
3 = 1/2" Hose Barb |
3 = 1/2" Hose Barb |
3 = 1/2" Hose Barb |
3 = 1/2" Hose Barb |
|
4 = Luer Lock |
4 = Luer Lock |
3B = 1/2" Hose Barb with filling bell |
4 = Luer Lock |
|
5 = 1/2” Sanitary* |
6 = 1/4" MNPT |
4 = Luer Lock |
6 = 1/4" MNPT |
|
6 = 1/4" MNPT |
5 = 1/2” Sanitary* |
||
|
6 = 1/4" MNPT |
|||

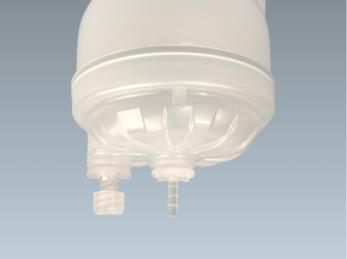

1/8” Hose Barb

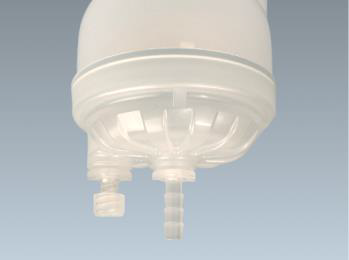

1/4” Hose Barb

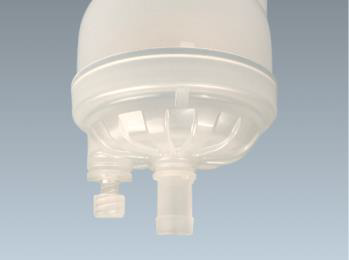

1/2” Hose Barb

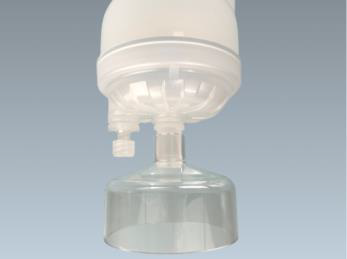

1/2” Hose Barb with Filling Bell

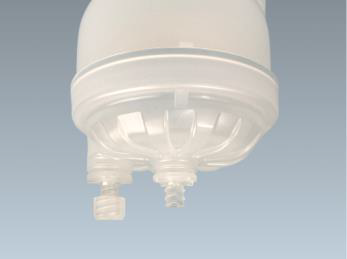

Luer Lock

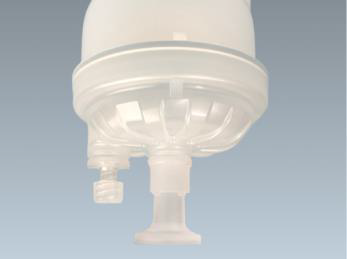

1/2" Sanitary*

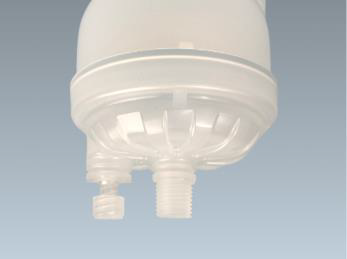

1/4" MNPT
